BRONZE BEARINGS & WEARPLATE

Anchor Bronze & Metals offers a complete line of cast bronze bearings, slide plates and wear plates. Cast bronze sleeve bearings, flange bearings, and custom parts are available with oil grooves or grease grooves. Maintenance-free self-lubricating bronze bearings with graphite filled grooves or graphite plugs are available.

Oil Grooves & Grease Grooves
Oil Groove Bronze Bushings
Oil Groove Bronze Bearings

Grease grooves are typically wider and deeper than oil grooves. This is to hold a supply of grease and to provide for the thick grease to be forced in. Oil grooves typically vary in width but are shallower than grease grooves. Most oil grooves are operating in a constant loss or closed oiling system that continually feeds the less viscous oil to the grooves. Double loop groove & double figure eight groove recommended for grease only.

Graphite Filled Grooves & Plugs

Wear Plate with Graphite Plugs

Graphite Plug Groove Bronze Bearings

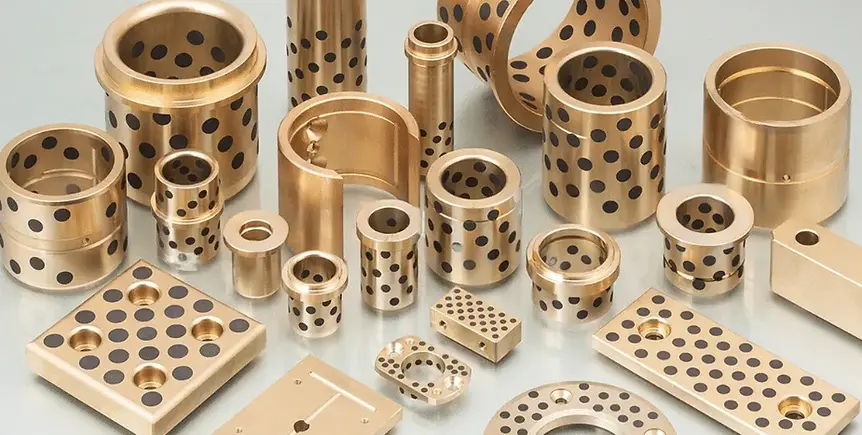

Maintenance-Free bronze bearings and wearplates with graphite filled grooves and graphite plugs are available. The graphite acts as a dry lubricant and provides maintenance-free continuous lubrication. The ID groove patterns can be filled with a special hardenable graphite paste. Graphite Plugs can be press fit through the wall of the bearing with a special epoxy resin binder. Typical plug diameter is 7mm with a 25% surface coverage. The graphite plugs can be placed around special features of your parts. Graphite bronze parts should be run dry with no oil or grease. Our graphite plug bearings typically have a coefficient of friction between 0.10 and 0.15, depending on a variety of factors affecting performance.
Diamond Cut Naval Brass Plate
Bronze Thrust Washer
Graphite Bronze Bearing
Bronze Guides
hydraulic pump wear plate
Bronze Wear Plate

BRONZE BEARING CATALOG

Other typical Bronze Finished Parts we produce are:

  • Plain Bronze Bushings

  • Full-Split Bronze Bushings

  • Flanged Bronze Bushings

  • Bronze Rings

  • Bronze Gear Blanks

  • Bronze Guides

  • Self-Lubricated Bushings

  • Bronze Sleeve Bushings

  • Thrust Washers

  • Split Half Bronze Bushings

  • Wear Plates

  • Impeller Shaft Sleeves

  • Bronze Adjusting Nuts

  • Bronze Bearings

  • Impeller Wear Rings

  • Labyrinth Rings

  • Pump Shaft Sleeves

  • Chain Plates

Bronze Bushings

REQUEST FOR QUOTE

Bronze Machined Parts
